In the intricate world of electronics, where precision and efficiency are paramount, Surface-Mount Device (SMD) resistors play a critical role in circuit design. These compact components are essential for controlling current and voltage in modern devices, from smartphones to industrial machinery. However, decoding their resistance values can be challenging due to their small size and unique marking systems. This is where the SMD Resistor Code Calculator becomes an invaluable tool for engineers, hobbyists, and manufacturers. As a global leader in PCB and component solutions, Jinxinyang Tech provides a wide range of SMD resistors and other high-quality components to power your projects. In this article, we’ll explore the significance of SMD resistors, the role of the SMD Resistor Code Calculator, and how it simplifies circuit design.
What Are SMD Resistors?
SMD resistors are compact, surface-mount components used to limit current, divide voltages, and protect circuits in electronic devices. Unlike traditional through-hole resistors, SMD resistors are designed for automated assembly, offering smaller footprints and higher reliability. Their miniature size makes them ideal for modern electronics, where space is at a premium.
However, SMD resistors use coded markings—such as three- or four-digit numbers, alphanumeric codes, or EIA-96 standards—to indicate their resistance values. These markings can be difficult to interpret without the right tools. The SMD Resistor Code Calculator simplifies this process, enabling users to quickly and accurately determine resistance values, ensuring seamless integration into circuit designs.
The global market for resistors, including SMD types, is thriving, driven by the demand for compact, high-performance electronics. Jinxinyang Tech offers a comprehensive range of SMD resistors, designed for precision and durability across industries like consumer electronics, automotive, and IoT.
Why Use an SMD Resistor Code Calculator?
Decoding SMD resistor markings manually can be time-consuming and error-prone, especially for beginners or when working with high-density circuit boards. The SMD Resistor Code Calculator streamlines this process by:
- Saving Time: Quickly converts coded markings into resistance values.
- Reducing Errors: Ensures accurate interpretation of complex codes.
- Enhancing Productivity: Simplifies design and troubleshooting for engineers and hobbyists.
At Jinxinyang Tech, we understand the importance of precision in electronics. Our SMD resistors are engineered to meet stringent quality standards, and tools like the SMD Resistor Code Calculator complement our offerings by empowering users to work efficiently.
Understanding SMD Resistor Codes
SMD resistors use several coding systems to indicate their resistance values. Here’s a breakdown of the most common formats and how the SMD Resistor Code Calculator decodes them:
1. Three-Digit Code
The three-digit code is one of the most common marking systems for SMD resistors. The first two digits represent the significant figures, and the third digit indicates the multiplier (number of zeros to add). For example:
- Code 472: 47 (significant figures) × 10² (multiplier) = 4,700 ohms (4.7 kΩ).
- Code 103: 10 × 10³ = 10,000 ohms (10 kΩ).
The SMD Resistor Code Calculator instantly converts these codes into readable resistance values, eliminating guesswork.
2. Four-Digit Code
Four-digit codes are used for higher-precision SMD resistors. The first three digits are the significant figures, and the fourth digit is the multiplier. For example:
- Code 1002: 100 × 10² = 10,000 ohms (10 kΩ).
- Code 4991: 499 × 10¹ = 4,990 ohms (4.99 kΩ).
The calculator handles these codes with ease, ensuring accuracy for precision applications.
3. EIA-96 Code
The EIA-96 system is used for high-precision SMD resistors with tolerances as low as 1%. It combines a two-digit code for significant figures and a letter for the multiplier. For example:
- Code 24C: The number 24 corresponds to 174 (from the EIA-96 table), and the letter C represents a multiplier of 100, resulting in 174 × 100 = 17,400 ohms (17.4 kΩ).
The SMD Resistor Code Calculator includes EIA-96 tables, making it simple to decode these complex markings.
4. Alphanumeric and R-Notation Codes
Some SMD resistors use alphanumeric codes or include an “R” to denote decimal points. For example:
- Code 2R2: 2.2 ohms.
- Code R47: 0.47 ohms.
The calculator interprets these variations, providing clarity for users working with diverse resistor types.
Jinxinyang Tech’s SMD resistors support all these coding systems, and our team can guide you in selecting the right components for your project.
How the SMD Resistor Code Calculator Works

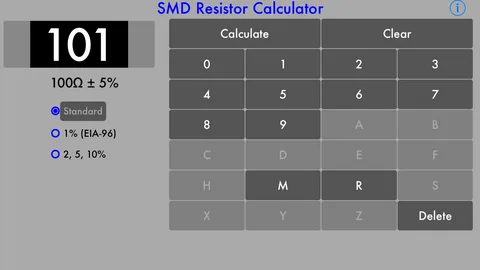

The SMD Resistor Code Calculator is a user-friendly tool designed to decode SMD resistor markings quickly. Here’s how it typically works:
- Input the Code: Enter the marking printed on the SMD resistor (e.g., 472, 24C, or 2R2).
- Select the Coding System: Specify whether it’s a three-digit, four-digit, EIA-96, or alphanumeric code (some calculators auto-detect).
- Get the Result: The calculator outputs the resistance value in ohms, often with additional details like tolerance or power rating if provided.
Many online calculators, including those recommended by Jinxinyang Tech, offer intuitive interfaces and support for multiple coding systems. These tools are essential for engineers, technicians, and hobbyists working with SMD resistors in design, prototyping, or repair.
Applications of SMD Resistors
SMD resistors are ubiquitous in modern electronics due to their compact size and reliability. Here are some key applications:
1. Consumer Electronics
From smartphones to gaming consoles, SMD resistors are critical for managing current and voltage in compact circuits. The SMD Resistor Code Calculator helps engineers verify resistance values during design and repair, ensuring optimal performance. Jinxinyang Tech’s SMD resistors are designed for high-density consumer devices, delivering precision and durability.
2. Automotive Systems
Modern vehicles rely on SMD resistors for sensors, control units, and infotainment systems. Accurate resistance values are crucial for safety and performance. The calculator simplifies troubleshooting and maintenance, while Jinxinyang Tech’s automotive-grade resistors meet stringent industry standards.
3. IoT and Smart Devices
The rise of IoT has increased demand for compact, precise components. SMD resistors are used in sensors, microcontrollers, and communication modules. The SMD Resistor Code Calculator ensures accurate component selection, and Jinxinyang Tech’s IoT-ready resistors support next-generation designs.
4. Industrial Automation
In industrial settings, SMD resistors regulate power supplies, control motors, and stabilize circuits. The calculator aids in rapid prototyping and maintenance, while our high-power SMD resistors at Jinxinyang Tech are built to withstand demanding environments.
Benefits of Using an SMD Resistor Code Calculator
The SMD Resistor Code Calculator offers numerous advantages:
- Accuracy: Eliminates errors in decoding complex markings.
- Efficiency: Speeds up design, prototyping, and troubleshooting processes.
- Accessibility: Available online or as mobile apps, making it convenient for professionals and hobbyists.
- Versatility: Supports multiple coding systems, from three-digit codes to EIA-96 standards.
Jinxinyang Tech complements these tools with a vast inventory of SMD resistors, ensuring you have the components needed for any project.
Challenges with SMD Resistors
While SMD resistors are highly effective, they present some challenges:
- Small Size: Their compact size makes markings difficult to read without magnification.
- Complex Codes: EIA-96 and alphanumeric codes can be confusing without proper tools.
- Environmental Sensitivity: Temperature and humidity can affect performance in harsh conditions.
The SMD Resistor Code Calculator addresses the first two challenges by simplifying code interpretation, while Jinxinyang Tech’s resistors are designed with robust materials to withstand environmental stressors.
Testing and Verifying SMD Resistors
To ensure SMD resistors perform correctly, testing is essential. A digital multimeter can measure resistance values, but first, you need to decode the markings using the SMD Resistor Code Calculator. Here’s how to test:
- Use the calculator to determine the expected resistance value.
- Set the multimeter to resistance mode (Ω).
- Place probes across the resistor’s terminals and compare the reading to the calculated value.
- Check for consistency; deviations may indicate a faulty component.
Jinxinyang Tech’s SMD resistors undergo rigorous quality testing, ensuring reliable performance in your circuits.
Why Choose Jinxinyang Tech?
As a global leader in PCB and component solutions, Jinxinyang Tech offers an extensive range of electronic components, including SMD resistors, integrated circuits, capacitors, inductors, and more. Our commitment to quality and innovation makes us the ideal partner for your projects:
- Comprehensive Inventory: From standard to high-precision SMD resistors, we have the components you need.
- Global Support: Fast delivery and expert guidance for clients worldwide.
- Cutting-Edge Solutions: Components designed for emerging technologies like IoT and automation.
Visit szjxy-ic.com to explore our offerings and find the perfect SMD resistors for your applications.
The Future of SMD Resistors and Code Calculators
As electronics continue to shrink and smart devices proliferate, the demand for SMD resistors is growing. Innovations in materials, such as conductive ceramics and eco-friendly composites, are enhancing performance and sustainability. The SMD Resistor Code Calculator is also evolving, with AI-powered tools and mobile apps offering real-time decoding and integration with design software.
Jinxinyang Tech stays ahead of these trends, providing state-of-the-art SMD resistors to support industries like IoT, automotive, and renewable energy. Our components empower engineers to create innovative, reliable solutions.
Conclusion
SMD resistors are the backbone of modern electronics, enabling precise control in compact circuits. The SMD Resistor Code Calculator simplifies the process of decoding their complex markings, saving time and reducing errors for engineers and hobbyists. From consumer devices to industrial systems, these tools and components are driving innovation across industries.
Jinxinyang Tech is proud to supply high-quality SMD resistors and electronic components to power your projects. Whether you’re designing IoT devices or prototyping new circuits, our solutions deliver excellence and reliability. Explore our offerings at szjxy-ic.com and discover how we can support your next innovation.
FAQs
What is an SMD Resistor Code Calculator?
The SMD Resistor Code Calculator is a tool that decodes the markings on SMD resistors to determine their resistance values, supporting formats like three-digit, four-digit, and EIA-96 codes.
How do I read SMD resistor codes?
Enter the code into an SMD Resistor Code Calculator, which interprets the marking based on the coding system (e.g., 472 = 4.7 kΩ). The calculator handles various formats for accuracy.
Why choose Jinxinyang Tech for SMD resistors?
Jinxinyang Tech offers a vast selection of high-quality components, global support, and expertise to meet your project needs, from prototyping to large-scale production.
